NETBOX M
Description

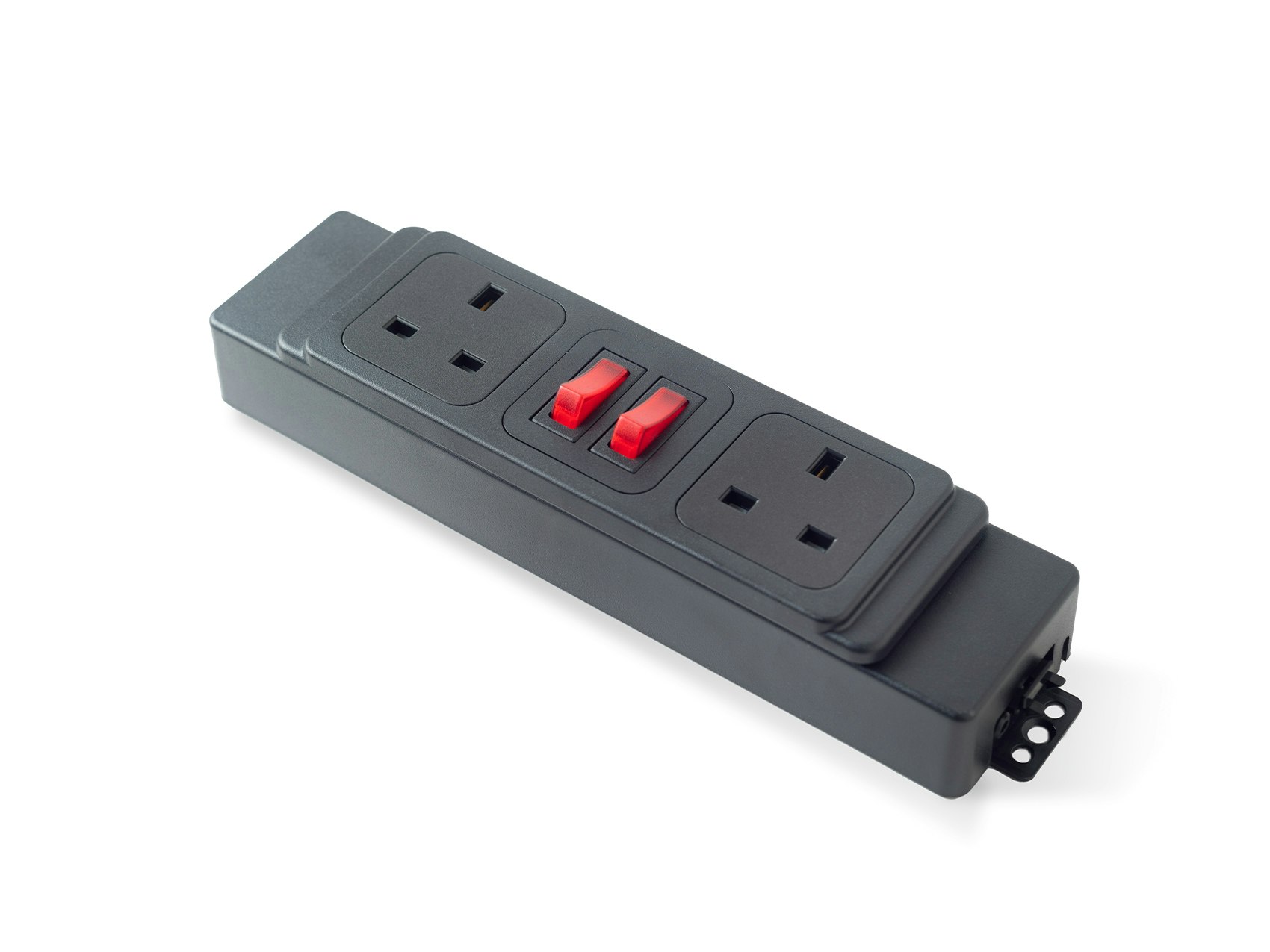

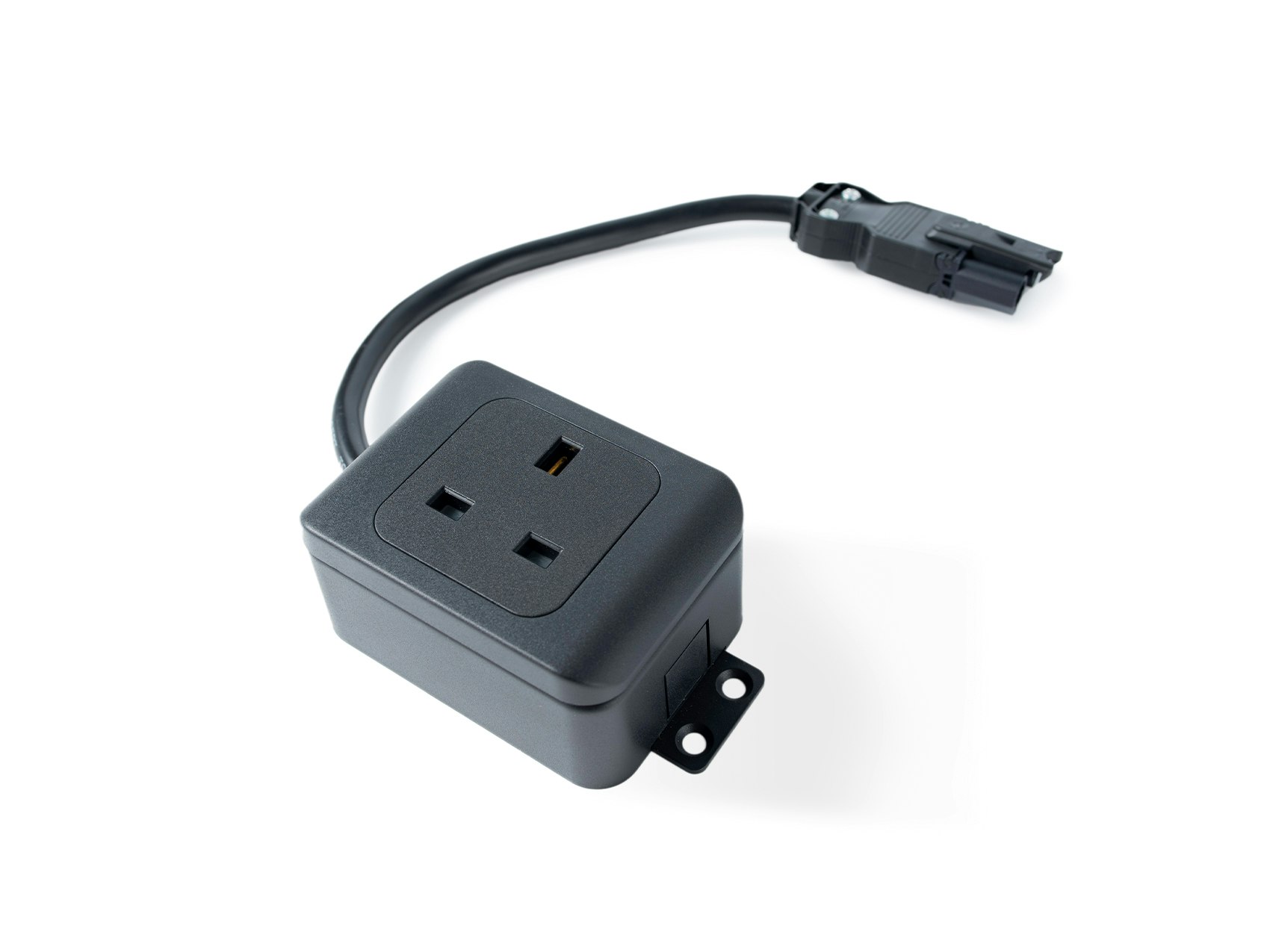

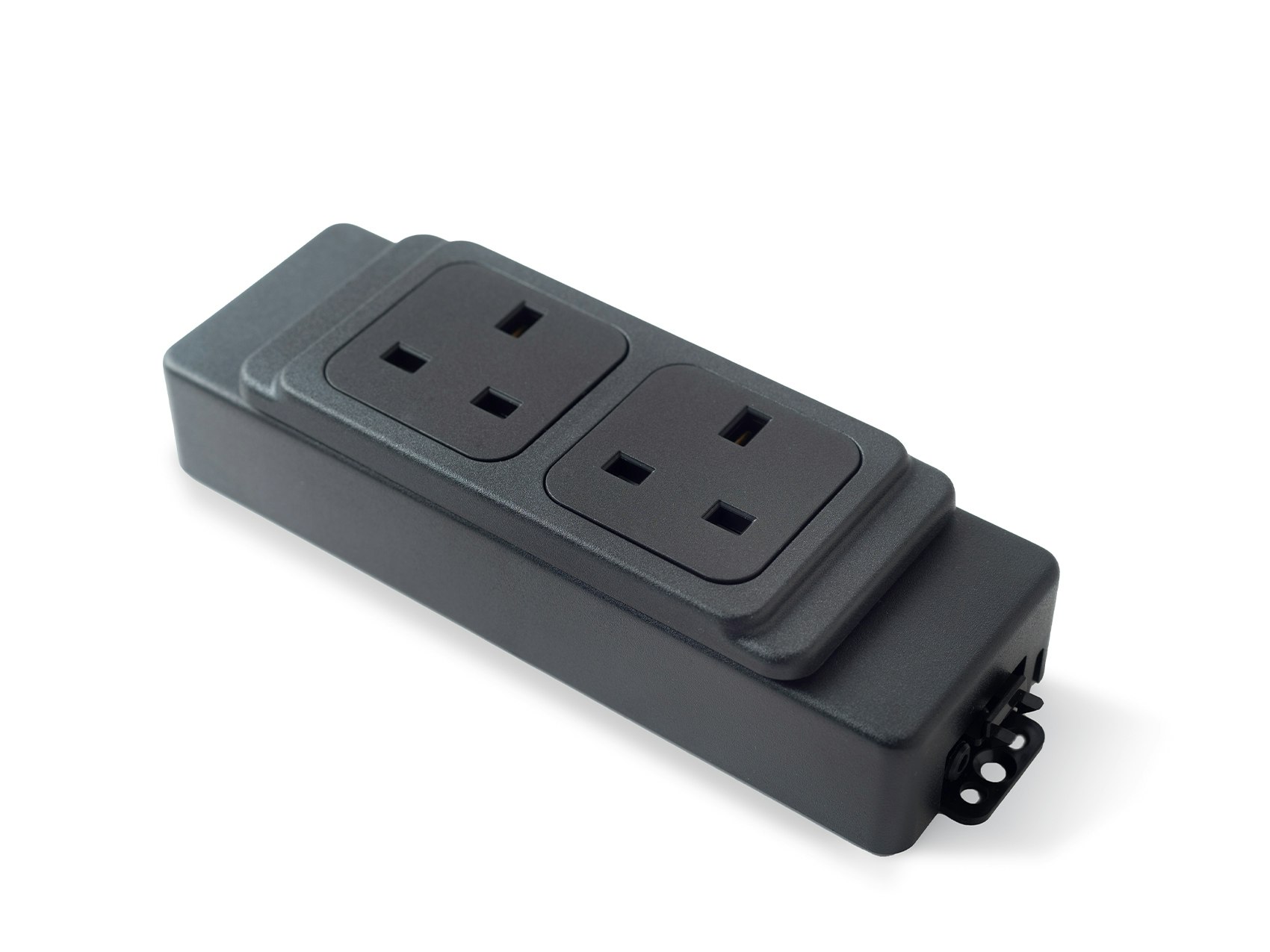

As the original A. & H. Meyer standard socket box for power, data and voice, the NETBOX M is a functional and cost-efficient electrification solution, which is available in 1, 2, 3, 4 or 5 gang configurations.

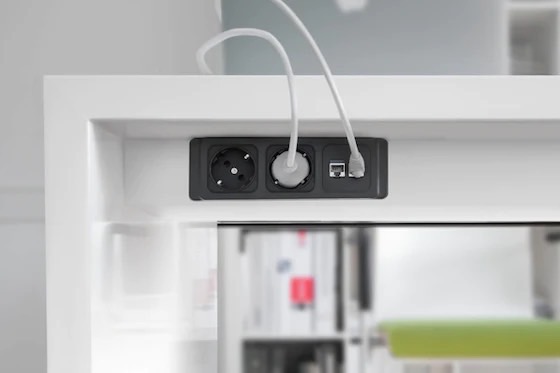

With a detachable frame on its plastic sheath, NETBOX M can be installed and used in many settings, and can be mounted to any surface or concealed within partitions and cable trays.
Colors
Black
Signal white
Product Details
Product description
- 1, 2, 3, 4 and 5 gang
- Standard model for power, data and multimedia
modules - Comes fitted with detactable frame
- Functional and cost efficient
Technical details
- Several NETBOXes can be interconnected using
connector cable - Can be installed and mounted on any given
surface or concealed within partitions and cable
trays - Option: to have an MCB and or RCB the whole
circuit
Internal wiring: - 3 x 1.5 mm² (standard)
- 3 x 2.5 mm² (upon request)
Installation method
- Step 1: Remove the frame and mount the NETBOX to the panel
- Step 2: Tighten the screws at the NETBOX
- Step 3: Place back the frame to the NETBOX
